Tuesday, 2 September 2014

Designed in China - C-Breeze innovative Window Air Purifier

Breathe is the topic chosen by Baoling Yang for her Master of Industrial Design major project

C-Breeze is an innovative Cloud controlled Solar powered Window Air Purifier system for the emerging smart home market. The app to drive the system was produced as a working prototype.


Designed in China - C-Breeze innovative Window Air Purifier designed by Master of Industrial Design student Baoling Yang Snow.

C-Breeze Window Air Purifier is an innovative window system with built in air purification. It ensures fresh air in every room as it purifies external polluted air before it enters the room, and releases anions and emits UV light to purify all existing room air. The exterior window surface is made of solar panels to convert solar energy to electricity and power the purifier. A number of hexagonal structural panels are glazed to let in sunlight. Six larger panels can rotate for ventilation and to allow for greater solar collecting efficiency. C-Breeze utilizes the innovative fan free ionic wind technology so it is whisper quiet when working. Users can control it by a keypad on the window frame or remotely by an app on the smartphone.

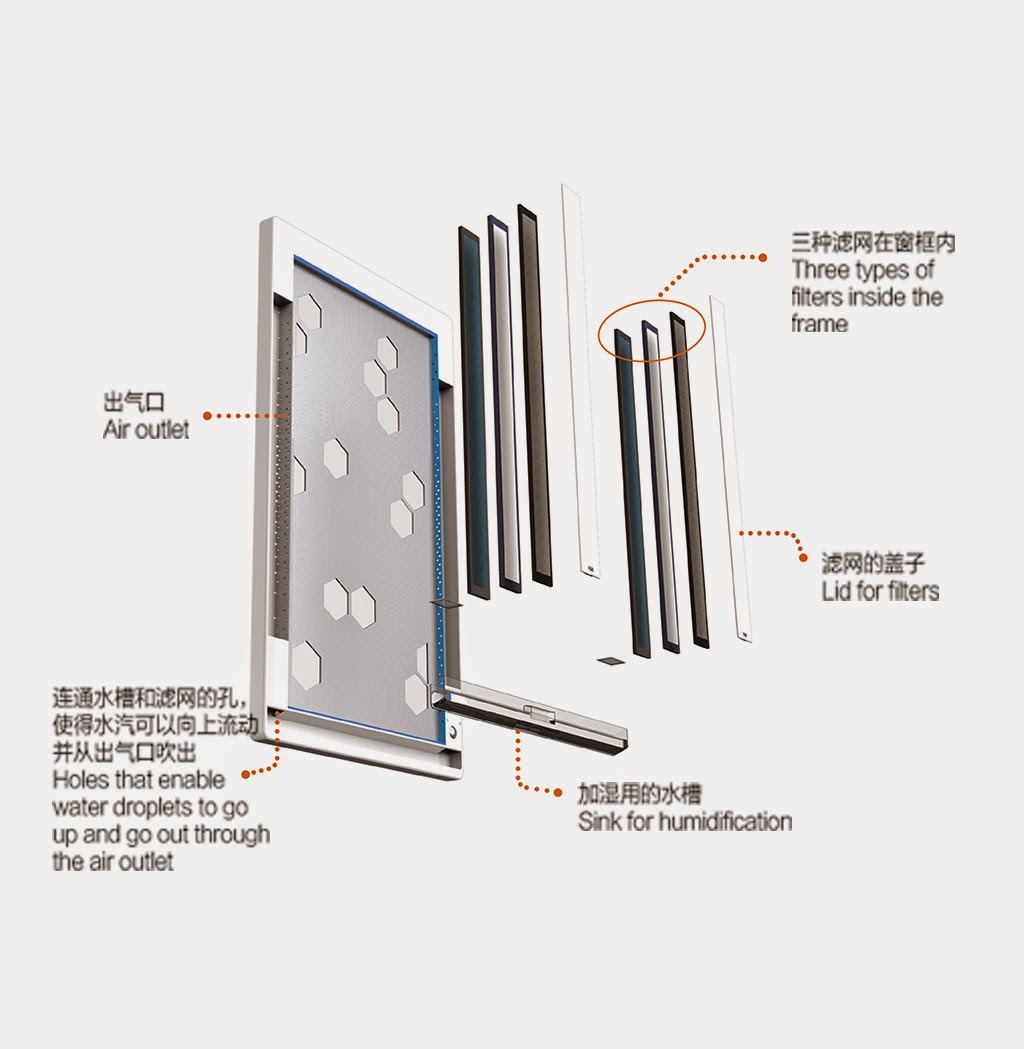

Exploded view c-Breeze Innovative Window Air Purifier system designed by Master of Industrial Design student Baoling Yang Snow.



Designed in China - C-Breeze Innovative Window Air Purifier designed by Master of Industrial Design student Baoling Yang Snow.




C-Breeze logo






Video link below. http://v.youku.com/v_show/id_XNzU5NDg2NTI4.html

The Master of Industrial Design is a two year Double Masters program offered at the  Southeast University-Monash University Joint Graduate School (Suzhou). The project is part of MDC5100 offered by Monash University Art Design and Architecture - MADA.

Students interested in the Master of Industrial Design (Double Masters) delivered in Suzhou should contact ian.wong@monash.edu

Full course details on SEU website here. http://yzb.seu.edu.cn/s/352/t/1754/09/b2/info68018.htm


学习工业设计。

More 2014 Major Projects here
